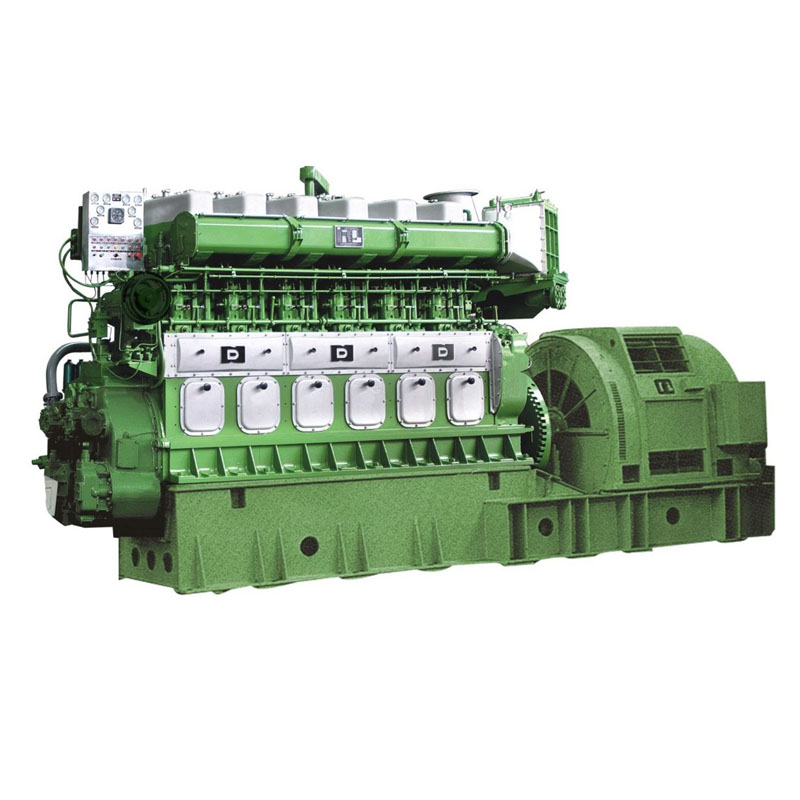

1000 to 2000 kW Marine Dual Fuel Generator Sets

With years of experience in production 1000 to 2000 kW Marine Dual Fuel Generator Sets, Megawatt can supply a wide range of Marine Dual Fuel Generator Sets. High quality 1000 to 2000 kW Marine Dual Fuel Generator Sets can meet many applications, if you need, please get our online timely service about it. In addition to the product list below, you can also customize your own unique products according to your specific needs.

Send Inquiry

Product Description

Leveraging our extensive production experience in the realm of 1000 to 2000 kW Marine Dual Fuel Generator Sets, Megawatt proudly offers a diverse array of solutions. Our high-quality offerings cater to a multitude of applications, assuring their capability to fulfill various requirements. Should you require assistance, our online customer service stands ready to provide timely support. Beyond the product selection showcased below, we extend the option to tailor and create unique solutions that align precisely with your specific needs.

Standard and Optional Parts

Absorber: standard
Cylinder freshwater heater: standard for self-start engine
Pregreasing pump: standard for self-start engine
Governor: electronic governor (standard)
Silencer: optional
Lifting device: standard

1000 to 2000 kW Marine Dual Fuel Generator Sets Parameters Table

Item		Unit	Technical Parameters
Engine Type			Four-stroke, water-cooled, in-line, turbocharged and intercooled, direct injection
Cylinder Bore × Stroke		mm	300 × 380
No. Cylinder			6 / 8
Revolution		rpm	500 - 600
Compression Ratio			13 : 1
SFOC		g/kW·h	≤194+3%
SLOC		g/kW·h	≤0.6
Cooling System			Closed circulating water cooling
Alignment Method			Flexible coupling
Starting Mode			Compressed air motor
Minimum Height for Lifting Piston		mm	2600 (above crankshaft centerline)
NOX Emission Standard			IMO Tier II, GB 15097-2016 1st
Generator Rated Power		kW	1000 - 2000
Power Factor			0.8(lagging)
Voltage	Steady state voltage regulating rate	%	＜±2.5
	Transient voltage regulating rate	%	-15～＋20
	Stabilization time	s	＜1.5
	Voltage fluctuation rate	%	≤±1
Frequency	Steady state frequency (rev.) regulating rate	%	＜5（parallel）
	Transient frequency (rev.) regulating rate	%	≤±10
	Stabilization time	s	＜5
	Frequency fluctuation rate	%	≤±0.5

Model Portfolio Table

Generator model	Rated Power （kW）	Rated Speed （rpm）	Engine		Alternator model	Dimensions (mm)	Net Weight (Kg)
Generator model	Rated Power （kW）	Rated Speed （rpm）	Engine model	Rated Power （kW）	Alternator model	Dimensions (mm)	Net Weight (Kg)
CCFJ1000J(Z)	1000	500/600	MN6300ZC6B	1103	Siemens / CMXD	7365×2285×3211	32000
CCFJ1250J(Z)	1250	600	MN6300ZC16B	1471		7600×2300×3211	33000
CCFJ1500J(Z)	1500	500	MN8300ZC20B	1765		9501×2736×3261	51500
CCFJ1800J(Z)	1800	600	MN8300ZC16B	2000		9522×2736×3261	52000
CCFJ2000J(Z)	2000	600	MN8300ZC30B	2206		9522×2736×3261	52550

Outline

Notes:
1. “CCFJ***J-W**” means conventional generator set, and “CCFJ***Z-W” means self-starting type generator set.
2. This model portfolio is mainly about 50Hz, 400V, and 60Hz products with corresponding powers that can be also produced according to customer requirements, please contact relevant personnel for specific specifications and technical parameters.
3. For generator set model selection, please make communicate with relevant personnel.
4. The delivery scope for each model engine shall be performed as per the corresponding technical files.
5. Dimensions and weight are for reference only.
